NEW! Cart Life / Low Speed Living FNR Switch with Integrated Power Button!

It's finally here! Introducing the Cart Life / Low Speed Living FNR Switch with an integrated center ON/OFF power button!

This specially designed switch solves multiple problems while giving you more flexibility and functionality in your golf cart!

One Switch. Multiple Possibilities!

Designed to handle up to 96V, this versatile switch offers several convenient uses:

• Battery Wake-Up Button – Use the center button to activate your lithium battery's wake-up circuit.

• Key Switch Replacement – Use the center button as a convenient power ON/OFF switch.

• 12V Accessory Control – Control your 12V accessories with the push of a button.

• Space-Saving Design – Perfect for tight dashboards where adding another switch isn't practical.

• Custom Applications – Get creative! The possibilities are endless when customizing your golf cart.

Easy Installation

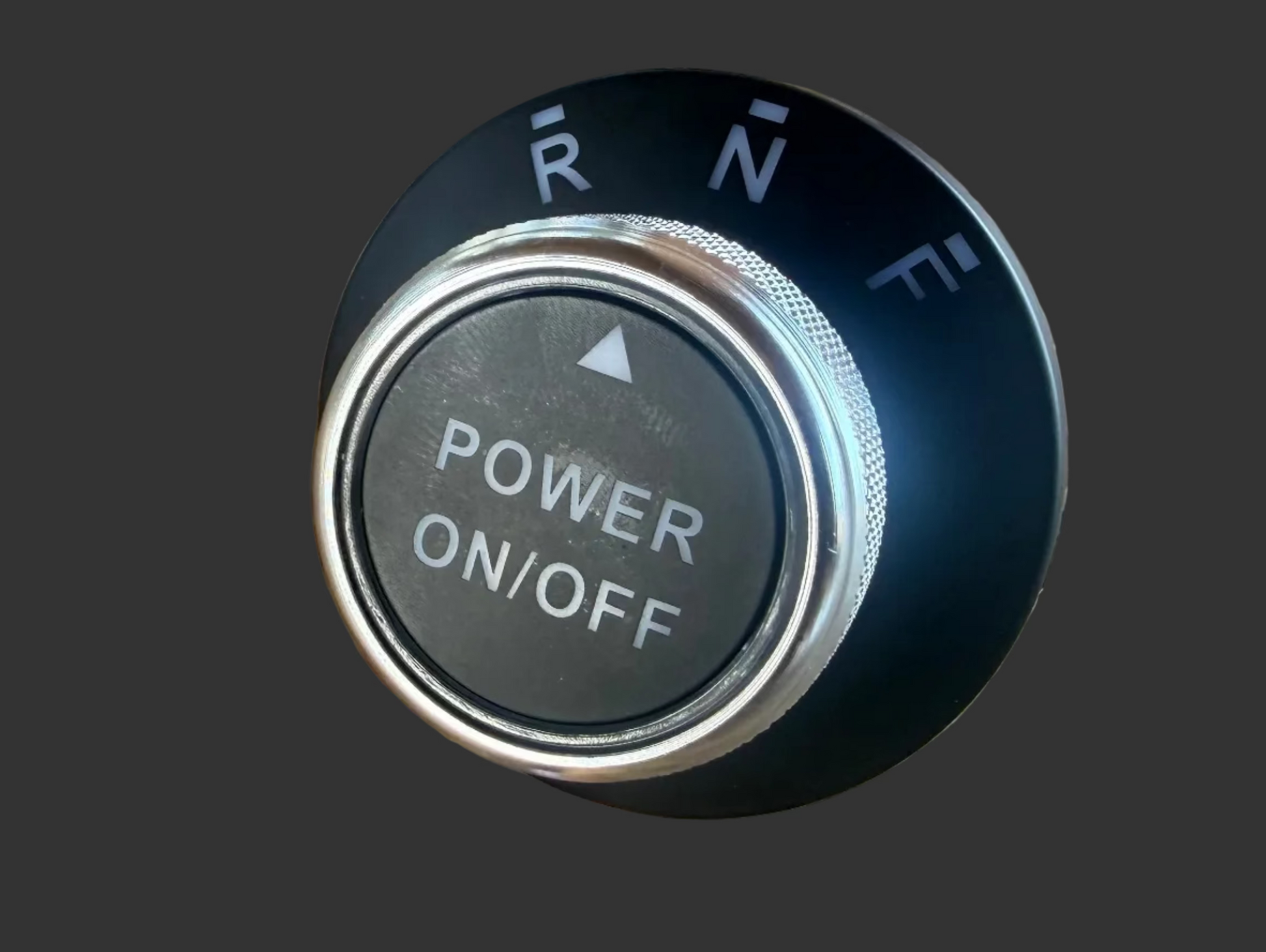

The FNR rotary switch installs just like a conventional Forward/Neutral/Reverse switch, with one major advantage: a separate, integrated latching ON/OFF push button in the center!

The center button has its own dedicated leads and operates independently of the FNR rotary switch. Press once for ON, press again for OFF.

IMPORTANT INSTALLATION NOTES

Please read carefully before installing!

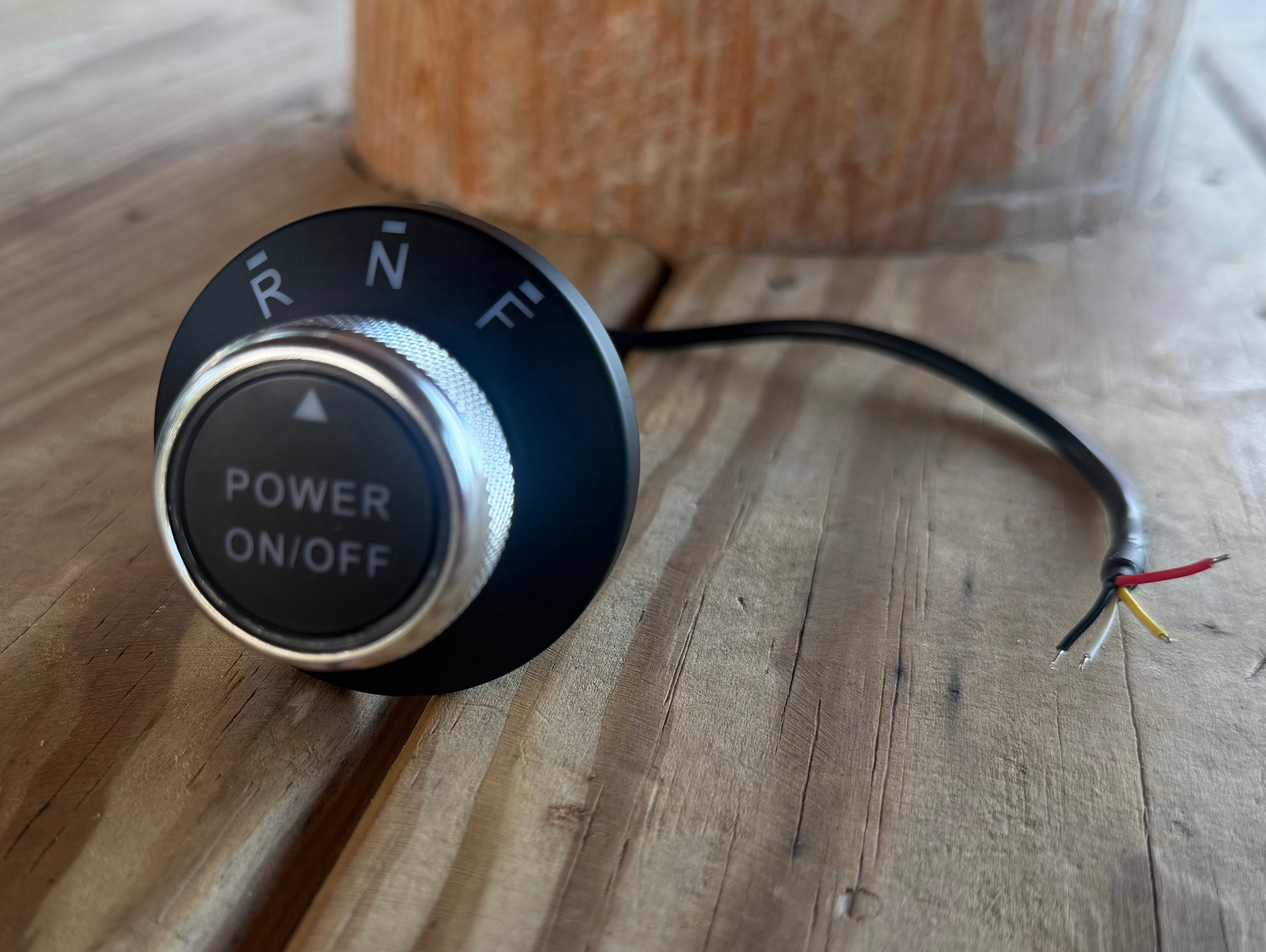

• RED WIRES – LED BACKLIGHT ONLY: These wires require 12V power ONLY. Applying higher voltage will damage the LED backlight and void warranty coverage.

• BLACK WIRES – 12V GROUND: These wires provide the ground connection for the LED backlight.

• YELLOW & WHITE WIRES – SWITCH CIRCUIT: These wires operate the switch circuit. They will not activate the LED backlight unless 12V is being supplied through the appropriate circuit.

IMPORTANT: Although the switch is rated for up to 96V, the LED backlight must NEVER receive more than 12V.

Questions? We're Here to Help!

Not sure how to wire your switch for your specific application? Contact us BEFORE installation! We're happy to answer questions and help you get it right the first time.

Quality Tested & Warranty Information

Every switch is individually tested before shipping to ensure proper operation.

Please Note: Damage caused by incorrect wiring, excessive voltage to the LED circuit, short circuits, or improper installation is not covered under warranty. We cannot accept returns or provide replacements for switches damaged due to installation errors.

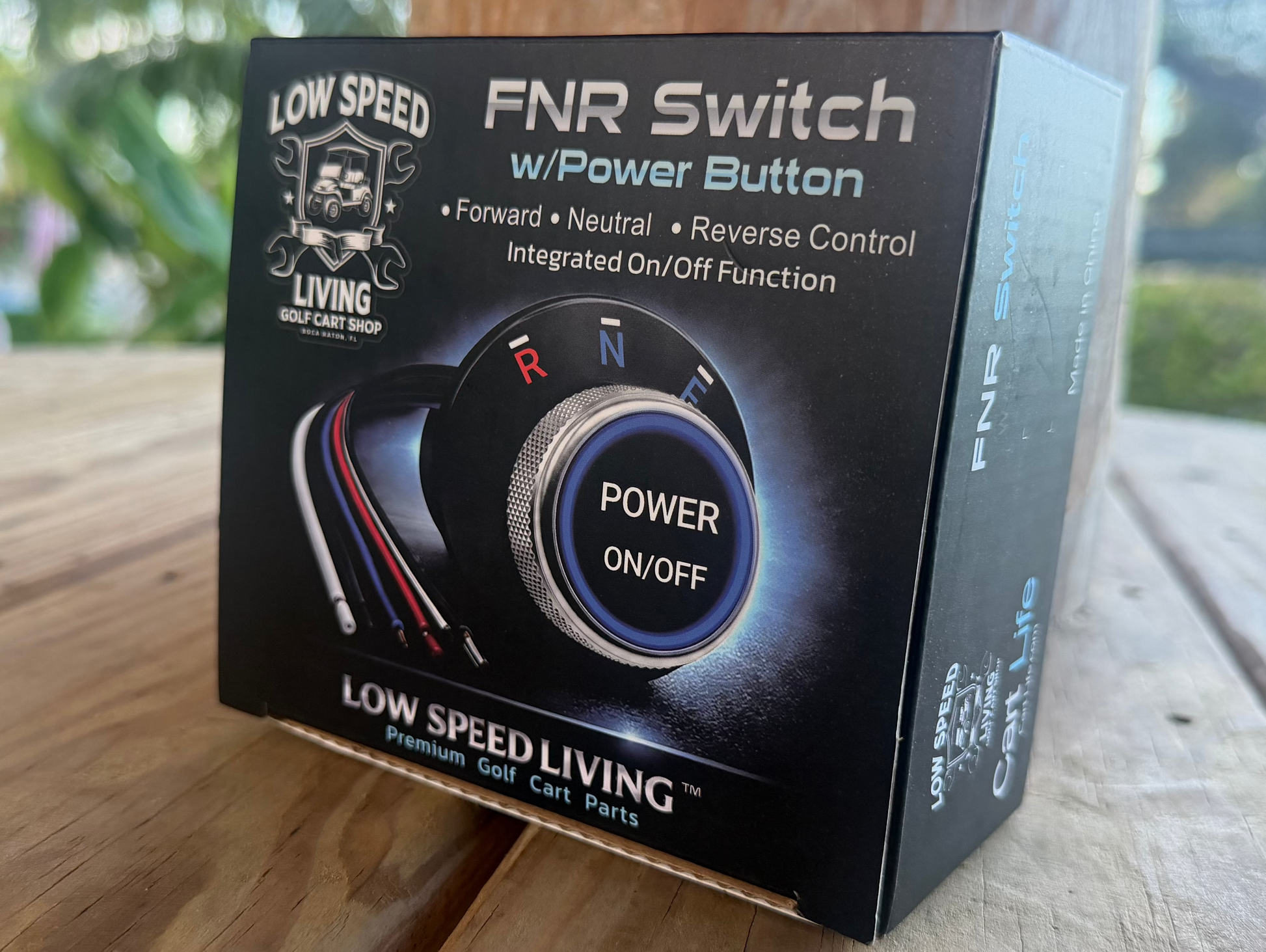

Make your dash cleaner, save space, and add functionality with the Cart Life / Low Speed Living FNR Switch!

Available at CartLife.com
